CORE SERIES RANGES
Stainless steel front, sides, backriser, high shelf, oven handle and bullnose. High temperature burner T knobs with set screw. Stainless steel bullet feet. Porcelain door liner and oven bottom. Ten (10) 28,000 BTU/hr. cast top burners with lift-off burner heads. One shrouded flash tube pilot for every two burners. 12" x 12" cast top grates with aeration bowls. Heavy-duty top grates and burner heads. Compression spring door hinge system for durability. Each standard oven is 26 ¾"W x 26"D x 13¾"H delivering 30,000 BTU/hr . Thermo stat adjusts from 250° to 500°F. One oven rack with four rack positions for each oven. ¾" rear gas connection and gas pressure regulator. Total range input: 340,000 BTU/hr.
JGR24-N/P - 24" wide SX series light-duty range, Vulcan Model No. SX24-4B. Stainless steel front, sides, backriser, high shelf and bullnose. Porcelain door liner and oven bottom. Four 28,000 BTU/hr. cast top burners with lift-off burner heads. Shrouded flash tube pilot sys-tem (one pilot per two burners). 12" x 12" cast top grates with aeration bowls. Heavy duty top grates and burner heads. Compression spring door hinge system for durability. 30,000 BTU/hr. oven measures 20.6"W x 25.5"D x 13.7"H. Thermostat adjusts from 250° to 500°F. One oven rack with four rack positions. 3⁄4" rear gas connection and gas pressure regulator. Total input: 142,000 BTU/hr.
Exterior Dimensions: 24"W x 32.5"D x 54.5"H on 6" adjustable legs

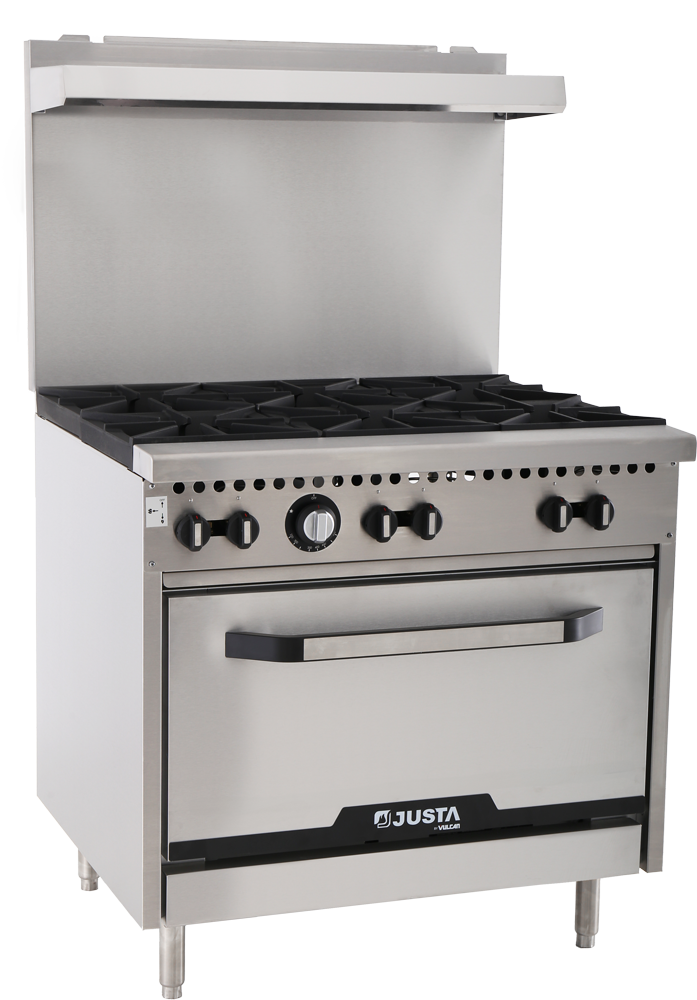

JGR36-N/P - Total input: 198,000 BTH/hr. SPEC SHEET
JGR60-N/P - Total input: 340,000 BTU/hr. SPEC SHEET
JGR60F-N/P - Total input: 340,000 BTU/hr. SPEC SHEET
